MILKING-AUTOMATIC TCR
AUTOMATIC TCR

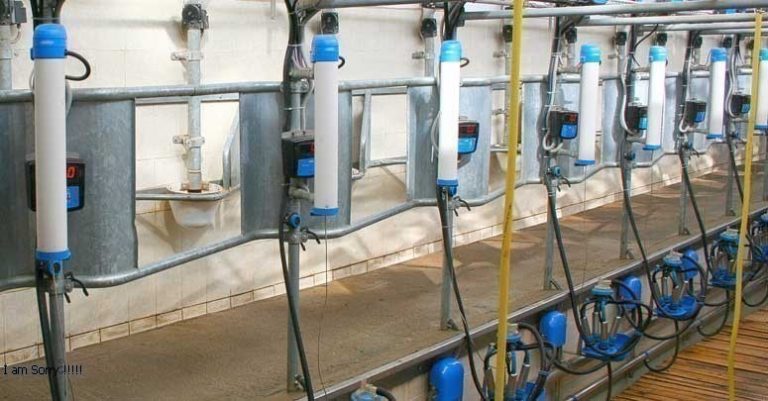

The Teat Cup Removal system allows the operator to save time and it ensures that milking process is fully respectful of the udder health. Automatic management of the TCR allows adjustment of milking features according to the specific needs of the stall.
ML MPD AUTO START

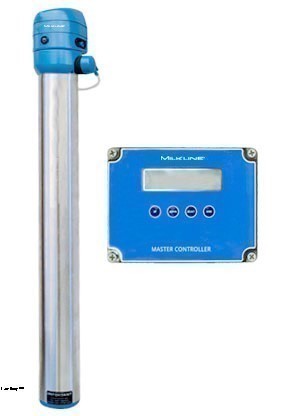

The automatic ML MPD AUTOSTART teat remover was created to provide the operator with the maximum ease when starting milking operations.
The “Autostart” function allows the milking to start by simply lifting the milking cluster.
Benefits for the farmer:
- ease to use
- easy and quick installation
- very low maintenance times and costs
- animal comfort during milking phase
The automatic ML MPD AUTOSTART teat cup remover consists of:
- stainless steel piston
- single control unit (to manage all the TCRs installed simultaneously)
- flow sensor
- command button
It is possible to set all working parameters by a single “Master Controller” power unit, connected online to every TCR installed:
- milk flow first waiting time
- minimum al milk flow level to start cluster removal
- delay time for cluster removal
- milking stop function in case of cluster fall-off
- residual milk removal from milking unit
All operations (START-STOP-MANUAL-AUTOMATIC) are controlled by a simple and wide push button.
The L.E.D in the cylinder head informs about the TCR working status:
- Flaashing Green Light Indicates TCR is in the first flow waiting phase
- Continuous Green Light Indicates TCR is working and reading the flow sensor (automatic milking)
- Continuous Red Light Indicates TCR is in the “removal” phase or “manually operated”
ML MPD NEW

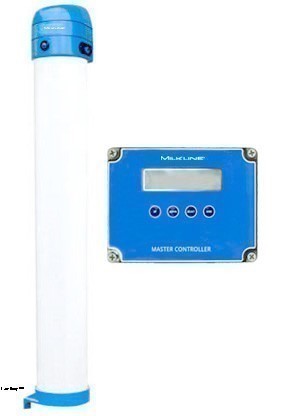

The automatic ML MPD NEW teat cup remover was created to provide the operator with the maximum ease when starting milking operations.
Benefits for the farmer:
- ease to use
- easy and quick installation
- very low maintenance times and costs
- animal comfort during milking phase
The automatic ML MPD NEW teat cup remover consists of:
- PVC piston
- single control unit (to manage all the TCRs installed simultaneously)
- flow sensor
- command button
It is possible to set all working parameters by the “Master Controller” power unit, connected online to every TCR installed:
- milk flow first waiting time
- minimum milk flow level to start cluster removal
- delay time for cluster removal (vacuum to claw interrupted)
All operations (START-STOP-MANUAL-AUTOMATIC) are controlled by a simple and wide push button.
The L.E.D in the cylinder head informs about the TCR working status:
- Flaashing Green Light Indicates TCR is in the first flow waiting phase
- Continuous Green Light Indicates TCR is working and reading the flow sensor (automatic milking)
- Continuous Red Light Indicates TCR is in the “removal” phase or “manually operated”
