MILKING-CLUSTER
CLASSIC LINE
The milking clusters of the Classic Line represent a good milking, kindness for the udder and simplicity of us.
The black rubber liners Dairy Engineering Pakistan® used are of the latest generation and they respond also to the European requirements in terms of food contact (RAL certificate, BfR). Designed for a perfect fit of the udder and to keep it healthy, this kind of liners stand out on the market thanks to the excellent wear resistance.
The torches are stainless steel light to best balance the milking cluster, to prevent air infiltration and to ensure a good emptying of the milk claw.
The milking tubes are constituted of traditional black rubber of excellent quality. Produced with the best available non-toxic blends, they can boast the RAL certification. The quality of the material used minimizes the possible transmission of unpleasant tastes to milk. This kind of milking tubes are highly resistant to fat migration, that are present in the milk, and to detergents used during the cleaning phases.
The milking claws… the heart of the milking cluster, are all ergonomic and optimally positioned, ideal for each type of udder.
Dairy Engineering Pakistan® offers different types of Classic milking clusters, each of them with specific characteristics to meet the needs of each farmer and they offer the maximum comfort to the operator during milking.
ML / PL milking cluster :
The milking cluster with a “standard” claw, with good capacity, suitable for bucket milking systems and portable milking machines.
Equipped with the upper part of plastic material, this milk claw is provided only with shut-off valve.

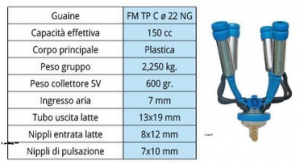

Technical data :
ML / AL Automatic milking cluster :
The milking cluster with a “standard” claw, very strong, 300cc, with the upper part of a stainless steel one-piece component. The claw used on this milking cluster is provided with or without shut-off valve and ø 12 mm or ø 15 mm milk inlet nipples.
ML / PL milking cluster :
The milking cluster with a “standard” claw, with good capacity, suitable for bucket milking systems and portable milking machines.
Equipped with the upper part of plastic material, this milk claw is provided only with shut-off valve.
ML / AL Maxflow claw milking cluster:
The milking cluster with a “very large” claw, specific for cows with high milk flow, very sturdy, 300cc, with the upper part of a stainless steel one-piece component. The claw used on this milking cluster is provided with or without shut-off valve and with increased milk inlet nipples.

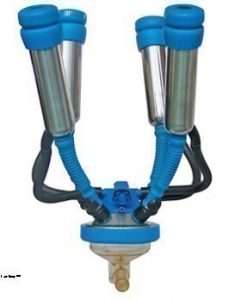

Dynamic P4C
DynamicP4C The DynamicP4C milking unit is equipped with a patented deflector that keeps milk flow independent per individual quarter, while simultaneously taking a reliable measurement of conductivity through four built-in conductivity measuring cells.
The special deflector shape, combined paired to the separating walls per single individual quarter, prevents the typical turbulencent of the milk flowthat flows from liners to the claw, thus avoiding the occurrence of the mastitis by “impact”contact.
The DynamicP4C line is designed and created to give the best results when used with the specific silicone liners and teat cups shells, which are patented to provide special protection and high resistance.
TECHNICAL DATA:
MILPRO DYNAMIC
Milpro Dynamic milking unit is equipped with a patented deflector that allows a milk flow dynamic separation of each quarter.
The special deflector shape, combined to the separating walls per single quarter, prevents the milk from getting into the bowl with the typical turbulence and forces it to flow along the claw walls thus avoiding the occurrence of mastitis by “impact”.
The XF milk bowl allows a very high milk flow, a better vacuum stability and minimal vertical encumbrance of the milking unit, due to the reduced outlet angle.
Silicone liners optimal use is successful only thanks to the patented combination of teat cup, liner, protection ring that guarantees high resistance and long duration.
